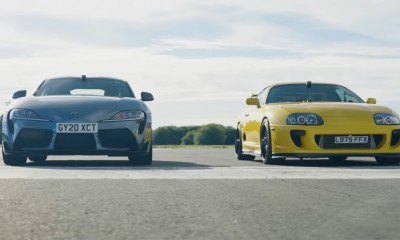

Toyota Supra MK4 vs MK5: A Definitive Tuning Guide for Professionals

The Toyota Supra is more than a car; it is a cultural touchstone in the performance automotive world. The nameplate carries a legacy built on two distinct pillars: the A80, or MK4, a legend forged in the crucible of 1990s Japanese engineering, and the A90, or MK5, a modern revival born from a German-Japanese collaboration. The debate between these two generations often devolves into nostalgia versus modernity. However, for the professional tuner, the discussion is far more nuanced. It is a technical comparison of two fundamentally different engineering and tuning philosophies.

The MK4 Supra, with its legendary 2JZ-GTE engine, represents the pinnacle of raw, over-engineered mechanical potential. Its tuning path is a testament to hardware-first modification, where a virtually indestructible engine block invites immense power, gated only by the limits of airflow, fuel delivery, and engine management. In contrast, the MK5 Supra and its BMW-derived B58 heart embody the era of digitally-controlled, high-efficiency performance. Its power is unlocked not primarily through wrenches and fabrication, but through code and calibration, responding with astonishing gains to software adjustments alone.

This report provides a definitive technical resource for tuning professionals, dissecting the engine architectures, modification pathways, ECU challenges, and financial realities of extracting maximum performance from each platform. As a leading provider of custom, dyno-tested ECU tuning files, HP Chiptuningfiles offers this analysis to empower our network of 4,000+ global clients with the expert knowledge required to master both of these iconic sports cars.

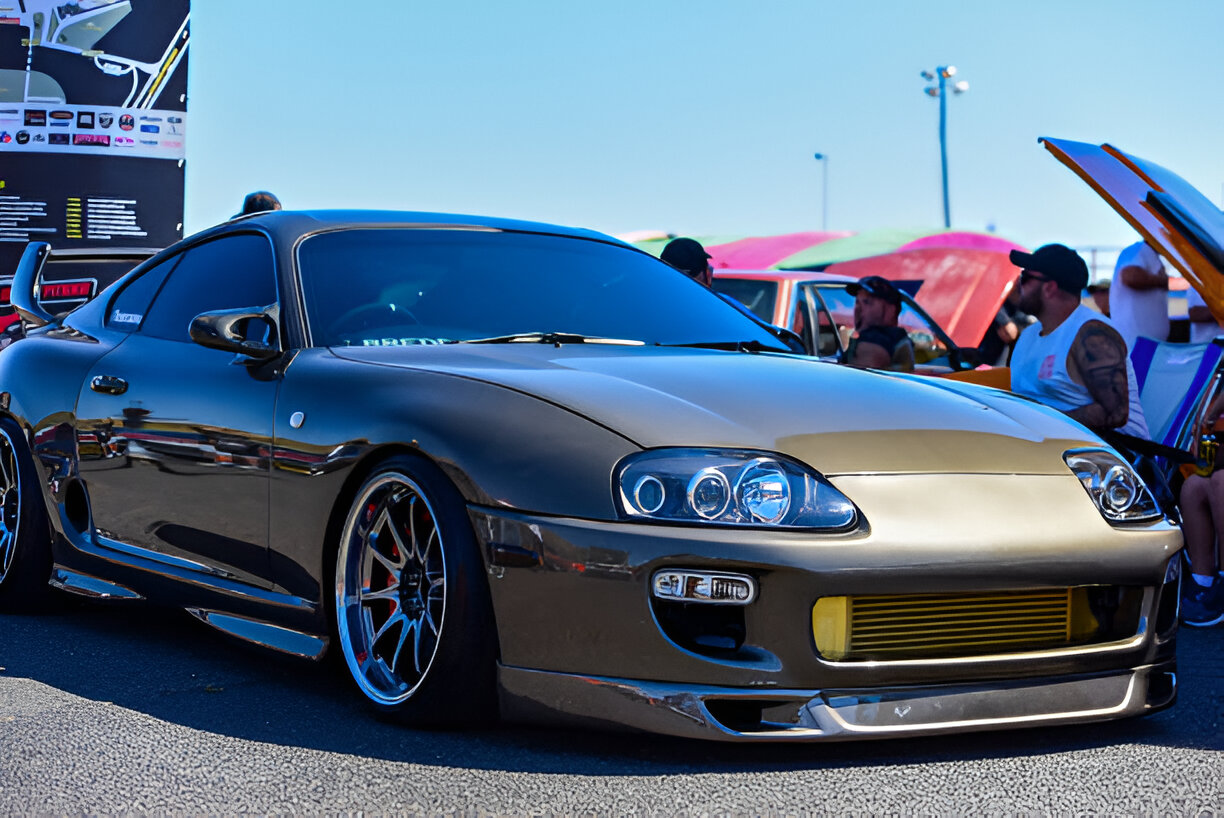

The Legend: Deconstructing the 2JZ-GTE & the MK4 Tuning Frontier

To understand how to tune the MK4 Supra, one must first understand the engine that made it famous. The 2JZ-GTE is an icon not just for what it was, but for what it could become. Its tuning frontier was, and remains, a landscape defined by mechanical strength and the challenge of overcoming its primitive electronic controls.

Architecture of a Giant: The 2JZ-GTE

The foundation of the MK4's tuning potential is the 2JZ-GTE's famously overbuilt architecture. This 3.0-liter inline-six engine was designed with a level of durability that far exceeded its factory power ratings, a characteristic that the tuning community would later exploit to its fullest extent.

  • Engine Block and Internals: The core of the 2JZ-GTE is its cast-iron, closed-deck engine block. This design provides exceptional cylinder wall rigidity, making it capable of withstanding the immense pressures of high-boost applications. Paired with a forged steel crankshaft and forged connecting rods from the factory, the engine's "bottom end" is robust enough to handle power levels two to three times its stock output without modification. This inherent strength is the primary reason the 2JZ became a legend; tuners could focus on airflow and fuel upgrades without immediately needing to perform a costly engine rebuild.

  • Sequential Twin-Turbo System: From the factory, the 2JZ-GTE employed a sophisticated sequential twin-turbocharger setup. A smaller turbo provided boost at low RPM for quick response, while a larger, second turbo would come online around 4,000 RPM to deliver strong top-end power. This system provided a broad, usable powerband, but its complexity is a known failure point in older, high-mileage examples. A critical distinction for tuners is the difference between Japanese Domestic Market (JDM) and export models. JDM Supras were equipped with CT20 turbos featuring ceramic turbine wheels, which are lighter for faster spool but are notoriously fragile and cannot handle the high boost and heat of aggressive tuning. Export models (USDM/UKDM) received more durable CT12B turbos with steel turbine wheels, making them better suited for initial modifications.

  • Stock Power Ratings: Officially, JDM 2JZ-GTE engines were rated at 280 PS (276 hp) due to the Japanese automotive industry's "gentleman's agreement" at the time. Export models, free from this restriction, were rated at a more potent 320-326 hp. The primary hardware differences accounting for this were the more robust steel turbos, larger 550cc fuel injectors (versus 440cc in JDM models), and more aggressive camshaft profiles on the export versions.

The BPU Path: The First Step to Power (400-450 HP)

For decades, the first foray into MK4 tuning has been the "BPU" or Basic Performance Upgrade package. This collection of bolt-on parts is designed to maximize the efficiency of the factory twin-turbo system and overcome the stock ECU's most basic limitations.

The core components of a BPU build are designed to improve the engine's ability to breathe:

  • Exhaust Modifications: The first restriction to address is the exhaust. Replacing the factory catalytic converters with a high-flow downpipe and installing a less restrictive cat-back exhaust system can alone add 30-40 hp by allowing the turbos to spool faster and more efficiently.

  • Increased Boost: With the exhaust flowing freely, the next step is to increase boost pressure from the stock ~11 psi to around 17-18 psi. This is achieved with a manual or electronic boost controller.

  • Fuel System Upgrades: To support the increased boost, an upgraded fuel pump is a necessity, especially on JDM models whose stock pumps are insufficient. Colder-range spark plugs are also required to prevent detonation under the higher cylinder pressures.

  • Overcoming the Fuel Cut: The most critical BPU component is the Fuel Cut Defender (FCD). The stock Toyota ECU is programmed with a safety feature that cuts fuel delivery if it detects boost pressure exceeding approximately 1.0 bar (14.7 psi). The FCD is a simple electronic device that intercepts the signal from the MAP sensor to the ECU, "clamping" the voltage so the ECU never sees a pressure reading high enough to trigger the fuel cut.

With these modifications, a 2JZ-GTE can reliably produce 400-450 horsepower. However, it is crucial to understand that the BPU path is not a true "tune." It is a series of mechanical and simple electronic tricks designed to circumvent a fixed, non-programmable ECU. The FCD does not remap fuel or ignition curves; it simply lies to the engine controller. The power gains are real, but the engine is operating on factory parameters that were never intended for that level of performance, highlighting the ECU's role as the ultimate gatekeeper.

The Single-Turbo Conversion: Gateway to Elite Power (700-1000+ HP)

To push the MK4 into the realm of true supercars, the factory sequential twin-turbo system must be abandoned. Its complexity, potential for reliability issues, and ultimate airflow limitations make it unsuitable for power goals above the 500-600 hp mark. The solution is a single-turbo conversion, the gold standard for high-horsepower 2JZ builds.

This conversion is a hardware-intensive process requiring a comprehensive set of components:

  • A high-flow T4-flange exhaust manifold.

  • A large single turbocharger, typically in the 62mm to 80mm compressor inducer range.

  • One or two external wastegates (e.g., TiAL or Turbosmart) for precise boost control.

  • A large front-mount intercooler (FMIC) and custom piping.

  • Upgraded fuel injectors (1000cc or larger) and multiple high-flow fuel pumps.

  • A full 3.5-inch or 4-inch turbo-back exhaust system.

With a properly executed single-turbo setup, a 2JZ-GTE with stock internals can reliably produce 600-800 horsepower. While 1000 hp has been achieved on stock blocks, it is widely considered to be pushing the limits of the factory pistons and connecting rods, severely impacting long-term reliability. For consistent and safe four-digit power levels, upgrading to forged pistons and rods is essential.

The Standalone Imperative: Engine Management for the MK4

The single most critical factor in any serious MK4 Supra build is the engine management system. The factory Toyota ECU is a product of its time; its processor is slow, its logic is simple, and most importantly, it cannot be reflashed or reprogrammed via the OBD port.

This limitation means that any modification beyond the basic BPU level necessitates a complete standalone ECU. This replacement engine management system provides tuners with full control over every critical engine parameter, including:

  • Fuel injector pulse width and timing.

  • Ignition timing maps.

  • Drive-by-wire throttle control (if converted).

  • Boost control via electronic solenoids.

  • Flex-fuel capability for running ethanol blends.

  • Advanced engine protection strategies (e.g., oil pressure, fuel pressure, knock detection).

A vast aftermarket has risen to meet this need, with leading options from companies like Haltech, Link, MoTeC, ECUMaster, and MaxxECU offering plug-and-play solutions for the 2JZ platform. The un-tunable nature of the stock ECU was, in fact, a primary catalyst for the growth and innovation of the entire standalone ECU industry. This history explains why the tools, knowledge, and tuning approach for the MK4 are fundamentally different from those for its modern successor.

The Modern Contender: Mastering the B58 & the MK5's Digital Powerhouse

The arrival of the A90 Supra introduced a new powertrain and a new tuning paradigm. The BMW B58 engine is a masterpiece of modern engineering, designed for efficiency, responsiveness, and, as tuners quickly discovered, an incredible capacity for making power through software.

A Masterclass in Modern Engineering: The BMW B58

While sharing the 3.0-liter inline-six configuration of its predecessor, the B58 is a completely different animal, built on a philosophy of "efficiency as strength."

  • Engine Block and Internals: Unlike the 2JZ's iron block, the B58 features a closed-deck aluminum block, which is significantly lighter and offers superior thermal dissipation. Despite being aluminum, the design is incredibly rigid. Like the 2JZ, it also features a factory-forged crankshaft and connecting rods, giving it a robust rotating assembly capable of handling substantial power increases.

  • Induction and Cooling: The B58 utilizes a single, highly-responsive twin-scroll turbocharger, which effectively separates exhaust pulses to reduce interference and improve spool time, resulting in near-instantaneous torque delivery. Perhaps its most significant architectural advantage is its integrated water-to-air intercooler (also known as a charge cooler), which is built directly into the intake plenum. This design drastically shortens the path for the compressed air, improving throttle response and providing more consistent and effective cooling than a traditional air-to-air front-mount intercooler. This superior thermal management is a key reason the B58 responds so well to tuning.

  • Stock Power Ratings: The MK5 Supra launched with a B58 variant rated at 335 hp. For the 2021 model year, Toyota upgraded the engine to the B58B30O1 version, boosting output to 382 hp with a redesigned cylinder head and pistons. However, independent dyno tests have consistently shown that BMW and Toyota conservatively rate these engines, with stock vehicles often producing close to their advertised crank horsepower figures at the wheels.

The Power of Code: Staged Tuning & Software Gains

The B58's modern design and sophisticated engine control unit (ECU), or Digital Motor Electronics (DME) in BMW terminology, make it exceptionally responsive to ECU remapping. Unlike the MK4, significant power can be unlocked with minimal to no hardware changes.

  • Stage 1 Tune: This is a pure software calibration applied to an otherwise completely stock vehicle. By optimizing boost pressure, ignition timing, and fuel targets, a Stage 1 tune can elevate the 382 hp B58 to between 420 and 470 horsepower—a staggering gain of up to 100 hp from a remap alone. This represents the single most cost-effective performance upgrade available for the platform.

  • Stage 2 Tune: To go beyond Stage 1, the primary hardware restriction must be addressed: the factory downpipe and its restrictive catalytic converter. A Stage 2 tune requires a high-flow or catless downpipe, which reduces exhaust backpressure and allows the turbocharger to operate more efficiently at higher boost levels. Combined with a corresponding Stage 2 ECU file from our chiptuning files database, this simple hardware change can push output to approximately 500 horsepower on premium pump gas.

Tuning Stage

Required Hardware

Fuel Type

Estimated Crank HP

Estimated Crank Torque

Key Benefit

Stock

None

93 Octane / 98 RON

382 HP

500 Nm

Excellent baseline performance

Stage 1

None

93 Octane / 98 RON

450 HP

600 Nm

Maximum power gain for minimal investment

Stage 2

High-Flow Downpipe

93 Octane / 98 RON

490 HP

680 Nm

Optimized performance with one hardware change

Stage 2 E30

High-Flow Downpipe

E30-E50 Ethanol Blend

540 HP

750 Nm

Significant power increase using ethanol fuel

The Locked ECU Conundrum: Navigating the Post-06/2020 Barrier

While the B58 is a tuner's dream, there is a significant hurdle for later models. In a move to increase security, Bosch and BMW implemented a new hardware and software lock on DMEs manufactured after June 2020. This lock prevents the standard OBD-II flashing protocol used by all major tuning platforms.

The only widely available solution is the "Femto Unlock." This complex process involves:

  1. Physically removing the DME from the vehicle.

  2. Shipping the unit to a specialized facility in Finland (Femto).

  3. Femto performs a bench unlock procedure that makes the DME receptive to OBD-II flashing.

  4. The DME is shipped back and reinstalled in the vehicle.

This process introduces a significant logistical and financial barrier. The service itself costs approximately $1,500 - $2,000 USD, not including two-way international shipping, insurance, and the cost of the tuning license itself. The turnaround time is typically 5-10 business days, plus shipping time. This has created a two-tiered used car market, where earlier, "unlockable" Supras command a premium among enthusiasts. For tuning shops, this presents both a challenge to explain to customers and a business opportunity to offer a complete ECU removal, shipping, and reinstallation service.

Fueling the Fire: The Critical Role of Ethanol and HPFP Upgrades

To push the B58 beyond the 500 hp mark, the key is fuel. Ethanol blends like E30 (30% ethanol, 70% gasoline) have a much higher effective octane rating and a cooling effect on the intake charge, which allows a tuner to safely run more boost and advance ignition timing. A Stage 2 car running an E30-E50 blend can easily achieve 500-550 horsepower.

However, this increased power demand exposes the next bottleneck: the high-pressure fuel pump (HPFP). The stock HPFP struggles to supply the required volume of fuel for high-ethanol blends at high RPM. To run these fuels safely and consistently, an upgraded HPFP is a mandatory supporting modification. The pump from the updated B58TU ("Technical Update") engine is a popular and effective bolt-on upgrade for this purpose.

Head-to-Head Technical Analysis: Which Platform Wins?

With a clear understanding of each platform's architecture and tuning path, we can conduct a direct comparison across common performance goals. The "winner" is not a simple answer but depends entirely on the owner's goals, budget, and tolerance for complexity.

The 500 HP Challenge

Reaching the 500-horsepower milestone starkly illustrates the philosophical divide between the two generations.

  • MK4 Supra (2JZ-GTE): Achieving 500 hp requires moving well beyond BPU and committing to a small single-turbo conversion or highly modified twin turbos. This is a hardware-intensive path demanding a new turbo, manifold, wastegate, intercooler, full exhaust, upgraded fuel system, and, most critically, a full standalone ECU and a custom dyno tune. The cost is substantial, driven by the sheer number of high-quality components and the specialized labor required for installation and calibration.

  • MK5 Supra (B58): Reaching 500 hp is remarkably simple and cost-effective. The path typically involves only a high-flow downpipe and a Stage 2 ECU tune. For cars built before June 2020, this is a straightforward process. For later cars, the significant cost and downtime of the Femto unlock must be factored in, but the hardware investment remains minimal.

Metric

Toyota Supra MK4 (2JZ-GTE)

Toyota Supra MK5 (B58, Pre-06/2020)

Toyota Supra MK5 (B58, Post-06/2020)

ECU Solution

Standalone ECU (e.g., Haltech, Link)

OBD-II Flash Tune (e.g., BM3, MHD)

Femto Unlock + OBD-II Flash Tune

Key Hardware

Single Turbo Kit, FMIC, Fuel System

High-Flow Downpipe

High-Flow Downpipe

Est. Parts Cost

$8,000 - $15,000+

$500 - $1,200

$500 - $1,200

Est. Labor/Tuning

$3,000 - $5,000+

$800 - $1,500

$2,500 - $4,000 (incl. unlock)

Total Est. Cost

$11,000 - $20,000+

$1,300 - $2,700

$3,000 - $5,200

Primary Challenge

High cost, mechanical complexity

Minimal

ECU unlock logistics and cost

The 700+ HP Frontier

As power goals escalate, the tuning paths begin to converge, with both platforms requiring significant hardware upgrades.

  • MK4 Supra (2JZ-GTE): This is where the 2JZ platform shines. Reaching 700+ hp is a well-trodden path requiring a larger single turbo, a fully built fuel system (injectors, pumps, lines), and often, upgraded camshafts and valve springs to improve high-RPM airflow. The standalone ECU and robust bottom end are already prepared for this level of power.

  • MK5 Supra (B58): At this level, the stock turbocharger becomes the primary limitation. Reaching 700+ hp requires an upgraded hybrid or full-frame aftermarket turbo. A comprehensive fueling solution, including both an upgraded HPFP and secondary port injection, is also mandatory. Furthermore, the immense torque produced can begin to exceed the limits of the stock ZF 8-speed automatic transmission's clutches, often necessitating a transmission build or clutch pack upgrade for long-term reliability.

Metric

Toyota Supra MK4 (2JZ-GTE)

Toyota Supra MK5 (B58)

Turbo Solution

Large Single Turbo Kit (e.g., Precision, Garrett)

Upgraded Hybrid or Full-Frame Turbo Kit

Fueling Solution

Large Injectors, Multiple Pumps, Fuel Rail

Upgraded HPFP + Port Injection Kit

Drivetrain

V160/V161 Manual is robust; Clutch upgrade needed

ZF8 Auto requires clutch pack upgrade/build

Key Bottleneck

Cost of high-end components

Turbocharger and Transmission Torque Limit

Drivability, Reliability, and the Tuning Philosophy

The on-road experience of these two tuned machines is vastly different. A 700 hp MK4 with a large single turbo will often exhibit noticeable turbo lag, followed by a violent, explosive rush of power in the upper RPM range—a thrilling but sometimes demanding experience. A 700 hp MK5, by contrast, will maintain a much more linear and accessible powerband. The advanced engine management and twin-scroll turbo provide a broad, flat torque curve that delivers immense acceleration with near-stock levels of smoothness and predictability. The tuning philosophy for the MK4 is about taming a mechanical beast; for the MK5, it is about optimizing a sophisticated digital system.

The Professional Tuner's Verdict: Business Implications & Opportunities

For professional tuning workshops, the Supra MK4 and MK5 represent two distinct but valuable business models.

  • Supra MK4: Servicing the MK4 market means specializing in high-margin, labor-intensive custom projects. This requires deep expertise in mechanical fabrication, engine building, and the complex art of calibrating standalone ECUs on a dyno. The customer base is smaller but highly dedicated and often has a significant budget for a complete build.

  • Supra MK5: The MK5 market is geared toward higher volume and faster turnaround. The primary services are software flashing and the installation of bolt-on parts like downpipes and intakes. The "Femto unlock" service, while logistically complex, offers a unique, high-value service that shops can provide. This market requires investment in specific tuning platform licenses and diagnostic tools but caters to a much larger and growing customer base.

For workshops catering to either generation, partnering with a reliable source for performance calibration is paramount. Chiptuningfiles provides the expertly developed, dyno-verified tuning files that enable shops to deliver safe, reliable, and powerful results to their MK5 Supra customers. Our extensive experience in ECU calibration applies the same principles of precision and safety required to master any high-performance engine, making us an ideal partner for the modern tuning professional.

Ready to elevate your tuning services? Chiptuningfiles to explore our massive database of tuning files and discover the tools and support that Europe's leading tuners rely on.

FAQ: Supra MK4 vs. MK5 Tuning

1. Is the BMW B58 engine as strong as the 2JZ-GTE? Yes, but they achieve their strength differently. The 2JZ-GTE uses a brute-force approach with a heavy, durable cast-iron block. The B58 uses modern engineering, featuring a lightweight but strong closed-deck aluminum block with factory-forged internals. Both engines have proven capable of handling 700-800 horsepower on stock internal components, making the B58 a worthy successor in terms of power-handling capability.

2. What is the biggest challenge when tuning a modern MK5 Supra? For MK5 Supras manufactured after June 2020, the single biggest challenge is the locked engine control unit (DME). It cannot be tuned via the standard OBD-II port without first undergoing a physical "Femto unlock" service. This requires removing the DME and shipping it to a specialized facility in Finland, which adds significant cost (approximately $1,500-$2,000) and several weeks of vehicle downtime to the tuning process.

3. How much horsepower can you get from a stock MK4 Supra with basic mods? With a set of Basic Performance Upgrades (BPU)—typically a full exhaust system, downpipe, upgraded fuel pump, and a method to increase boost past the factory fuel cut—a MK4 Supra with the stock 2JZ-GTE engine and turbos can reliably produce between 400 and 450 horsepower.

4. Is it cheaper to get 500 HP from a MK4 or a MK5 Supra? It is overwhelmingly cheaper, faster, and easier to achieve 500 horsepower with a MK5 Supra. A MK5 can reach this target with just a high-flow downpipe and a Stage 2 ECU tune, often supplemented with an ethanol fuel blend. A MK4 requires a much more extensive and expensive list of modifications, including a single-turbo conversion, a full fuel system upgrade, and a standalone engine management system, to reliably reach and exceed 500 horsepower.
