Chevrolet S10 2.2: Ficha Técnica, Specs & Tuning Guide

12 October 2025

Hey, we are HP Chiptuningfiles – Europe’s leading ECU tuning file service provider. We deliver custom, dyno-tested tuning files for diesel, petrol & hybrid engines, trusted by 4,000+ clients worldwide. If you're driving a Chevrolet S10 2.2 and looking to boost its capabilities with professional hp chiptuning files, our solutions can enhance power and torque. In this guide, we'll cover the S10 2.2's ficha técnica, key specs, and tuning options for optimal performance.

What Is the Chevrolet S10 2.2 Pickup?

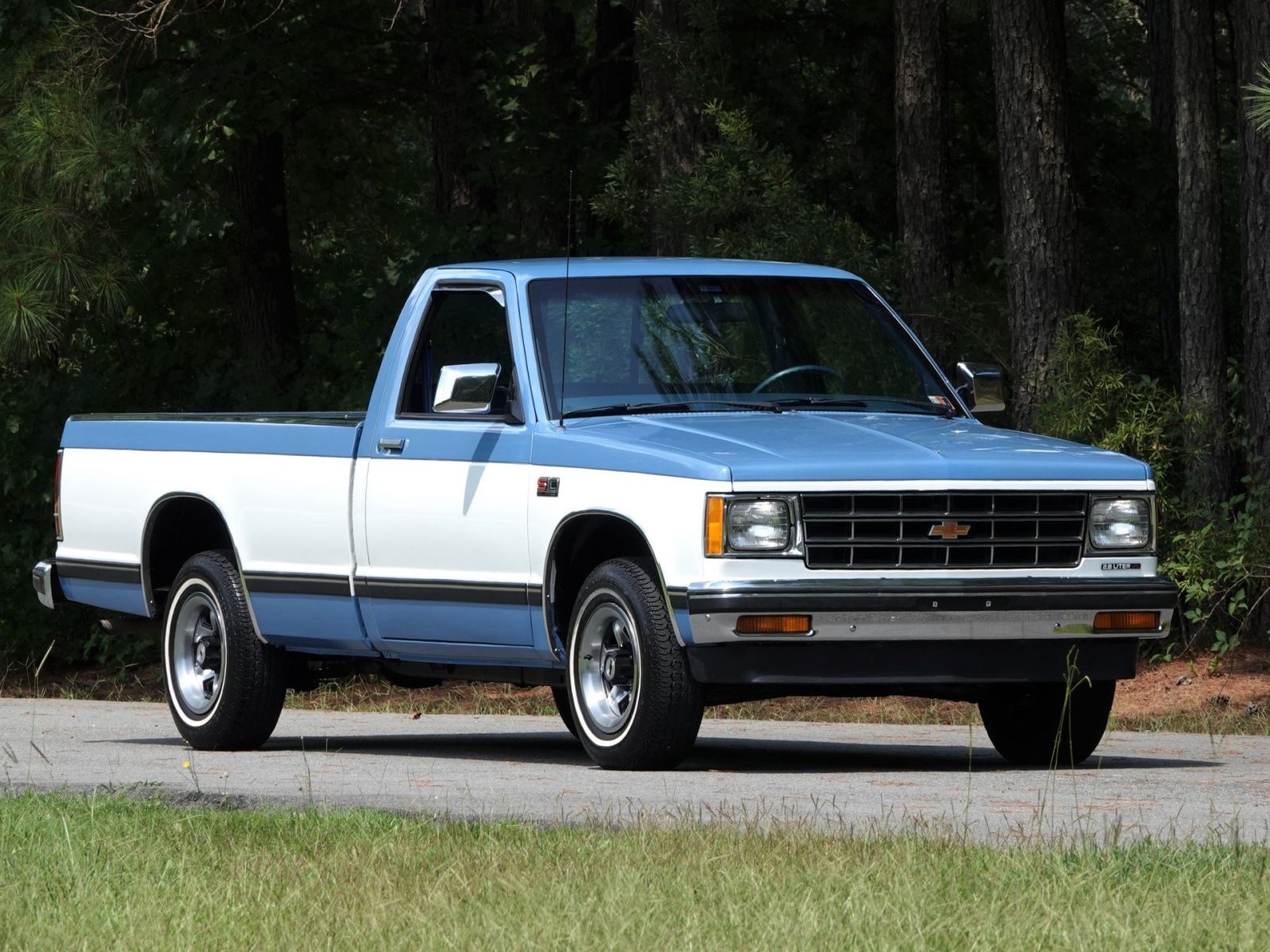

The Chevrolet S10 2.2 is part of the compact pickup truck lineup, popular in markets like the US and South America from the mid-1990s to early 2000s. Featuring a 2.2L inline-4 engine, it's known for reliability, fuel efficiency, and versatility in daily driving or light hauling. In Brazil, models like the S10 De Luxe 2.2 CS emphasized affordability and durability, while US versions focused on compact utility. Chevrolet S10 2.2 Pickup

This engine variant, often MPFI or EFI, provides a balance of power for urban use without the thirst of larger V6 options. For similar pickups, check our Nissan Patrol 2024 ECU Tuning.

Direct answer for snippet: Chevrolet S10 2.2 ficha técnica includes a 2,198 cc engine, 106-120 hp, manual or automatic transmission, and payload up to 810 kg.

Detailed Ficha Técnica and Specs of the Chevrolet S10 2.2

The S10 2.2's specs vary by market and year, but focus on efficiency and practicality for a compact truck.

Engine and Performance Specs

The 2.2L engine is an inline-4, often flex-fuel in later models.

Displacement: 2,198 cc (2.2L)
Engine Type: Inline-4, MPFI / EFI or SFI
Horsepower: 106 cv (78 kW) @ 4,800 rpm (Brazil 1996); 120 hp (89 kW) @ 5,000 rpm (US 2000)
Torque: 190 Nm @ 2,800 rpm (Brazil); 140 lb-ft (190 Nm) @ 3,600 rpm (US)
Fuel System: Multi-point fuel injection, flex-fuel capable in some
Compression Ratio: 9.2:1 (approx.)
Top Speed: 160-170 km/h
Acceleration (0-100 km/h): 12-14 seconds
Fuel Economy: City 9-11 km/L, highway 12-14 km/L (depending on market)

This setup offers decent low-end pull for a truck. For V8 alternatives, see Chevrolet 4.8L V8 Tuning Guide.

Transmission and Drivetrain

Transmission: 5-speed manual or 4-speed automatic
Drivetrain: Rear-wheel drive (RWD) standard; 4x4 optional in some models
Gear Ratios: Close-ratio for manual, smooth for auto

RWD provides good handling for light off-road.

Chassis, Suspension, and Brakes

Frame: Ladder frame
Front Suspension: Independent with coil springs
Rear Suspension: Leaf springs
Brakes: Front disc, rear drum (ABS optional)
Wheels/Tires: 15-inch steel or alloy, 205/75R15 tires
Payload Capacity: Up to 810 kg
Towing Capacity: 1,500-2,000 kg (braked)

These make it sturdy for work.

Dimensions and Capacities

Length/Width/Height: 4,890 mm / 1,690 mm / 1,650 mm (approx.)
Wheelbase: 2,750 mm
Ground Clearance: 160 mm
Curb Weight: 1,400-1,600 kg
Fuel Tank: 76 L
Cargo Bed: Standard size for compact pickup

Table of key ficha técnica:

Category	Specification
Engine Displacement	2,198 cc inline-4
Power	106-120 hp
Torque	190 Nm
Transmission	5MT / 4AT
Drivetrain	RWD (4x4 opt.)
Fuel Economy	9-14 km/L
Payload	810 kg
Towing	1,500-2,000 kg
Weight	1,400-1,600 kg
Dimensions (L/W/H)	4,890 / 1,690 / 1,650 mm

ECU Tuning for Chevrolet S10 2.2: Boosting Performance

ECU tuning remaps the S10 2.2's engine control unit to optimize fuel, ignition, and air for better output. For this NA engine, gains focus on efficiency and mid-range power.

Our chiptuning files are tailored for Chevy models.
