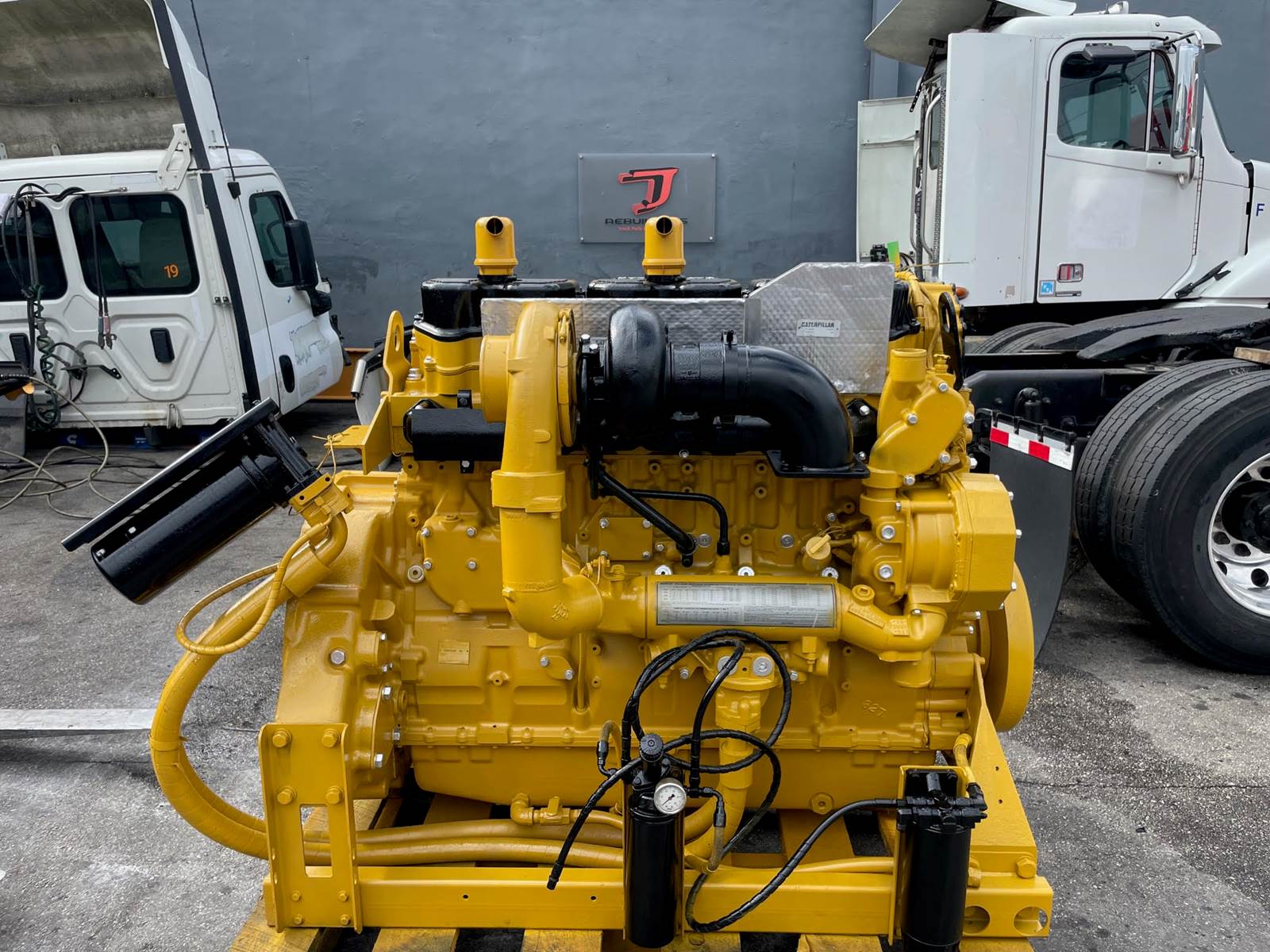

What Is the Caterpillar C16 Engine?

The Caterpillar C16 is a heavy-duty inline-6 diesel engine designed for on-highway trucks, industrial applications, and off-road equipment. Introduced in the late 1990s as an evolution of the C15, it features advanced electronic controls and robust construction for high-torque output in Class 8 trucks like Peterbilt or Kenworth. With emissions compliance up to Tier 3, it's favored in construction, mining, and long-haul transport.

Known for durability, the C16 delivers strong low-end torque for pulling heavy loads, making it ideal for vocational use. Variants include ratings from 575 to 600 hp, with some marine or industrial versions reaching higher. For similar heavy-duty engines, check our Scania R400 Specs Tuning Guide.

Direct answer: Cat C16 specs include a 15.8L displacement, inline-6 configuration, up to 600 hp, and 2,050 lb-ft torque, with a dry weight around 1,497 kg.

Detailed Specifications of the Caterpillar C16

The C16's design emphasizes reliability in harsh environments, with features like ACERT technology in later models for better emissions and efficiency. Below, we outline key specs based on standard truck applications.

Engine and Performance Specs

The C16 is an inline-6 with electronic unit injection (EUI) for precise fuel delivery.

• Displacement: 15.8 L (964 cu in)

• Configuration: Inline-6, 4-stroke diesel

• Bore x Stroke: 5.5 in x 6.75 in (140 mm x 171 mm)

• Compression Ratio: 16.5:1 (typical)

• Horsepower Range: 575-600 hp (428-447 kW) @ 1,700-2,100 rpm

• Torque Range: 1,850-2,050 lb-ft (2,508-2,780 Nm) @ 1,200 rpm

• Governed Speed: 2,100 rpm

• Maximum RPM: 2,120 rpm

• Aspiration: Turbocharged and aftercooled

• Emissions: Tier 3 compliant (pre-ACERT and ACERT variants)

• Fuel System: Electronic Unit Injection (EUI)

• Oil Capacity: 40-44 quarts (38-42 L)

• Dry Weight: Approximately 3,300 lbs (1,497 kg)

Performance highlights include strong mid-range power for grades and loads up to 80,000 lbs GVW. For diesel comparisons, see our Mercedes-Benz ECU Tuning Diesel Petrol Solutions.

Transmission and Drivetrain Compatibility

The C16 pairs with heavy-duty transmissions like Eaton Fuller or Allison automatics.

• Compatible Transmissions: 10-18 speed manuals or 6-7 speed automatics

• Drivetrain: Typically rear-wheel drive in trucks, with optional configurations

• PTO Options: Available for auxiliary power

• Fuel Economy: 5-7 mpg in loaded trucks, improvable with tuning

Explore tuning tools in our Hardware section.

Cooling, Lubrication, and Dimensions

• Cooling System: Liquid-cooled with thermostat-controlled flow

• Lubrication: Full-flow filtration with high-capacity pump

• Dimensions (L x W x H): Approx. 57 in x 36 in x 50 in (1,448 mm x 914 mm x 1,270 mm)

• Starter/Alternator: 12V or 24V systems

These ensure longevity in extreme conditions.

Here's a specs summary table:

Category	Specification
Displacement	15.8 L
Configuration	Inline-6 diesel
Bore x Stroke	5.5 x 6.75 in (140 x 171 mm)
Horsepower	575-600 hp @ 1,700-2,100 rpm
Torque	1,850-2,050 lb-ft @ 1,200 rpm
Compression Ratio	16.5:1
Weight (Dry)	3,300 lbs (1,497 kg)
Fuel System	EUI
Emissions	Tier 3
Oil Capacity	40-44 quarts

ECU Tuning for Caterpillar C16: Enhancing Heavy-Duty Performance

ECU tuning remaps the C16's electronic control unit to adjust fuel maps, boost, and timing for optimized output. In heavy-duty applications, this boosts torque for hauling while improving fuel economy by 6-12%.

At HP Chiptuningfiles, our tuning file service specializes in Cat engines, offering custom files via OBD or bench modes.

How Does ECU Tuning Work for the C16?

Tuning reads the ECU file (often using tools like KESS V3), modifies parameters, and flashes the update. For C16, focus on DPF/EGR deletes in off-road use to reduce restrictions.

See our KESS V2 vs V3 KESS3 Guide for tools.

Stage 1 Tuning: Economy and Power Remap

Stage 1 is software-only, yielding 15-20% gains.

• Power Increase: +100-120 hp (up to 720 hp)

• Torque Boost: +300-400 lb-ft (up to 2,450 lb-ft)

• Benefits: Better fuel economy (up to 10%), smoother operation

• Modes: Economy for mileage, Power for hauling

Our hp chiptuning files support these.

Stage 2 Tuning: Hardware Enhancements

Add exhaust or air upgrades with remap.

• Upgrades: Big Boss manifolds, turbos

• Gains: +150-200 hp, +400-500 lb-ft

• Pros: Reduced EGTs, improved spool

• Considerations: Emissions deletes for off-road

Check our Dyno-Tested ECU Tuning Files.

Stage 3 Tuning: Maximum Performance Builds

For extreme duty, include injectors and compounds.

• Upgrades: Larger turbos, forged internals

• Gains: +200+ hp (800+ hp possible)

• Applications: Mining, heavy haul

• Risks: Increased maintenance

Our trusted safe ECU tuning solutions ensure reliability.

Stage 1 vs Stage 2 vs Stage 3: Comparison

Tailor to your needs.

Stage	Modifications	Power Gain	Torque Gain	Cost Estimate
Stage 1	ECU remap only	+100-120 hp	+300-400 lb-ft	€500-1,000
Stage 2	Exhaust, turbo, remap	+150-200 hp	+400-500 lb-ft	€2,000-4,000
Stage 3	Full build, compounds	+200+ hp	+500+ lb-ft	€5,000+

For more, see Stage 1 2 3 ECU Tuning Guide.

Pros and Cons of Tuning the Caterpillar C16

Pros

• Enhanced torque for loads

• Fuel savings 6-12%

• Customizable with our ecu file service

Cons

• Potential warranty void

• Emissions issues on-road

• Requires pro installation

How to Tune Your Caterpillar C16 Safely

1. Diagnose: Scan ECU.

2. Read File: Use bench/OBD; OBD vs Bench vs BDM Tuning.

3. Upload: To our platform.

4. Flash: Install tuned file.

5. Test: Dyno verify.

Create an account for help.

Outbound: Official specs at Caterpillar.com; tuning forums at TheTruckersReport; PDI products PDIDiesel.

Why Choose HP Chiptuningfiles for C16 Tuning?

Experts in hp-chiptuning, we offer dyno-tested files for heavy-duty like C16. See Why Custom ECU Tuning Files Matter in 2025. Updates in News.

About Us or contact us.

FAQ

What are the C16 Cat engine specs?

15.8L inline-6, 575-600 hp, 1,850-2,050 lb-ft torque, Tier 3 emissions.

What gains from Cat C16 tuning?

Up to 20% power (120 hp) and 12% fuel savings with stage 1.

Is ECU tuning safe for C16?

Yes, with dyno-tested files; see How Much HP Does a Tune Add.

How to get C16 tuning files?

Upload to Chiptuning Files, buy credits.
